The right light for every treatment
We spent a long time looking for the perfect partner and found the perfect one: LED technology from CCEA in Italy
TRACKALPHA 24VDC
TRACKALPHA 24VDC are suitable for use on CNC and EDM machines. The luminaire series is tested at internal test facilities and the IP67 degree of protection and IK06 impact resistance are confirmed during mechanical operations with hardened.
The new TRACKALPHA 2018 version features two innovations: PWM dimming and through-wiring. The luminaire series is available in 5 dimensions and wattages. LED lights replace neon lights. M12 connectors and components allow quick, easy and secure connection. The L-brackets allow flexible mounting of up to 100°.
- PWM dimming (2018 version)
- Through-wiring (2018 version)
- Coolant, vibration-resistant: IP67
- Direct connection 22VDC – 28VDC
- Various holder systems, up to 100°, also with magnet
- 5 Dimensions
- 5 wattages: 13W – 19.5W – 34W – 47W – 68W
TRACK ALPHA 230V
Our TRACK series has a successor with new performance: LED machine light TRACK ALPHA 230VAC; for CNC, EDM machines, suitable for use with coolants, emulsions, metal parts, dust-protected. 230V driver integrated. Simple, quick replacement of the conventional neon light in 230V. Available fixings on the side or rear of the luminaire allow the luminaire to be adjusted up to 100°.
- Absolute protection for metal parts, many types of coolants and emulsions
- 230V direct connection with integrated driver
- 100° adjustment possible with the various mountings
- 3 sizes available
- M12 plug connector for secure IP67 connection
- Length 441mm , 681mm and 1041mm

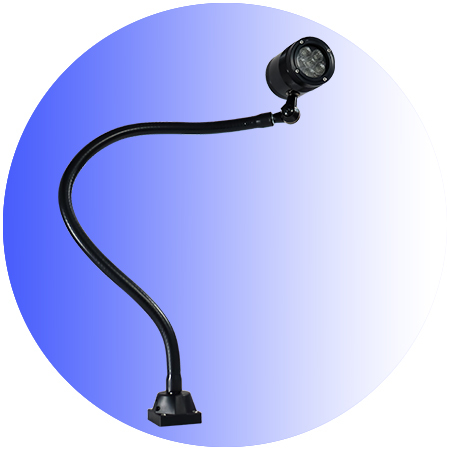

LED light with flex arm
Lighting for workstations, manual machine tools such as lathes and milling machines. Good adjustment with robust flex arm. Available with 3, 6 Power LED, 40° optics. Brightness control with touch switch.
- 3 – 6 power LED
- 5000K
- Mains supply 24VDC
- Flex arm 600mm
- Touch system (BF2 version only)
- Optics 40°
- M12-A 3P connection
- External driver 100-240Vac
